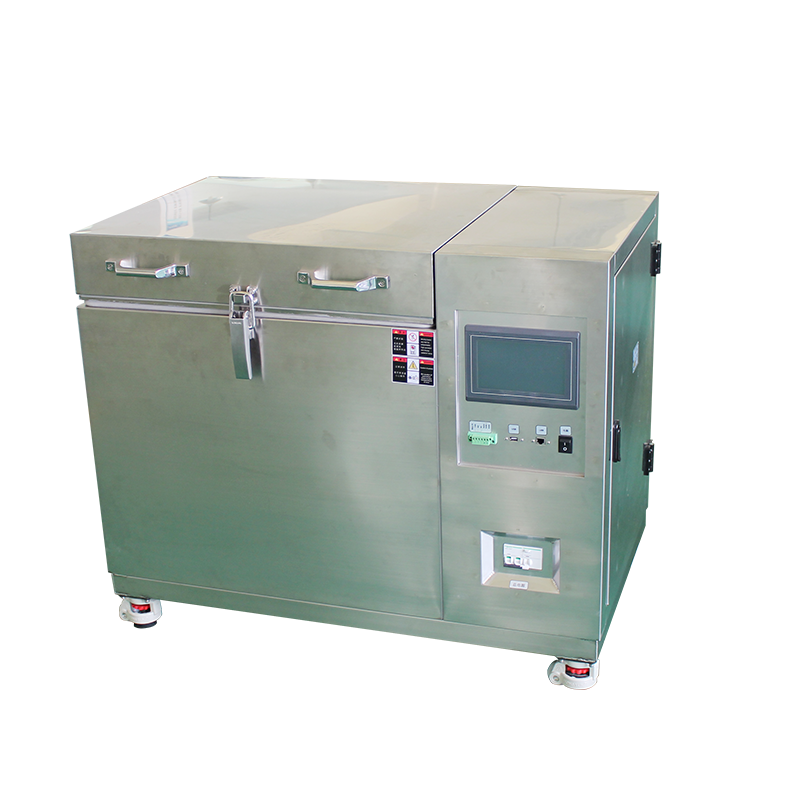

Cryogenic Test Chamber

Product Usage :Cryogenic test chambers are primarily used in aerospace, defense, information technology, and electronics industries to determine the environmental adaptability and reliability of instruments, electrical products, materials, components, and complete equipment under high-temperature, low-temperature, or combined conditions. They also allow simultaneous energization of the test specimen for real-time measurement of its electrical performance parameters.

Apply to

Customizable :Specific product specifications and parameters can be customized according to the customer's actual situation or customization. You can contact us at any time to obtain quotations and solutions.

Parameter Details



Model Studio Size  (D*W*H)mm Dimension(D*W*H)mm
LRHS-101-LD 450×450×500 1100×900×1350
LRHS-225-LD 500×600×750 1150×1100×1600
LRHS-504-LD 700×800×900 1350×1300×1750
LRHS-800-LD 800×1000×1000 1450×1500×1850
LRHS-1000-LD 1000×1000×1000 1450×1500×1850
temperature range -196℃~RT
Temperature uniformity ≤2℃ (at no load)
Temperature fluctuation ±1℃(at no load)
heating rate ≥3℃/min
cooling rate ≥3℃/min
Time Setting Range 1~60000M
Outer case material High quality A3 steel plate electrostatic spraying
Inner box material Imported high-grade stainless steel SUS304
Insulation material Rigid polyurethane foam + fiberglass
Temperature Controller Imported “UEC” brand temperature meter
temperature sensor PT100 platinum resistance temperature measurement body
Cooling method liquid nitrogen refrigeration
standard configuration Sample racks, 2 tiers, with condensate catch pan and drain out of the box
security protection Compressor overpressure, overload, motor overheating, overall equipment phase failure/reverse phase
Over-temperature, overall equipment timing, leakage protection, overload and short-circuit protection
Supply Voltage AC220V±10% 50HZ AC380V±10% 50HZ
Power 2.5kW/3.0kW/4.5kW/6.5kW/6.5kW
operating environment 5℃~+28℃ ≤85% RH
Note:
1、the above data are in the use of ambient temperature of 25 ℃ and well ventilated conditions measured
2、Can be customized according to the specific requirements of the user non-standard deep cold test chamber etc
3、This technical information, if there is any change without prior notice
product

Feature

The main features of the Cryogenic Test Chamber:
1. Programmable Touch Screen Controller
2. Custom Sizes Available
3. Running Time Meter
4. Capable of Handling Extreme Temperature
5. High Performance Even Under Load
6. Incandescent Interior Lighting
7. Modular,Robust Reliable Construction
8. Stainless Steel Interior
9. Painted Galvanized Steel Exterior For Long Life
10. Heavy-duty Flooring to Support Vehicles
11. Mechanical Cooling
12. Comprehensive Safety Features
13. Refrigeration Gauges
14. Refrigeration Sound Deadening Package
15. All Circuits Fused or Circuit Breaker Protected.
16. All Wiring Numbered or Color Coded
17. Compressor Overload Protection
18. Prefabricated for On-Site Installation
